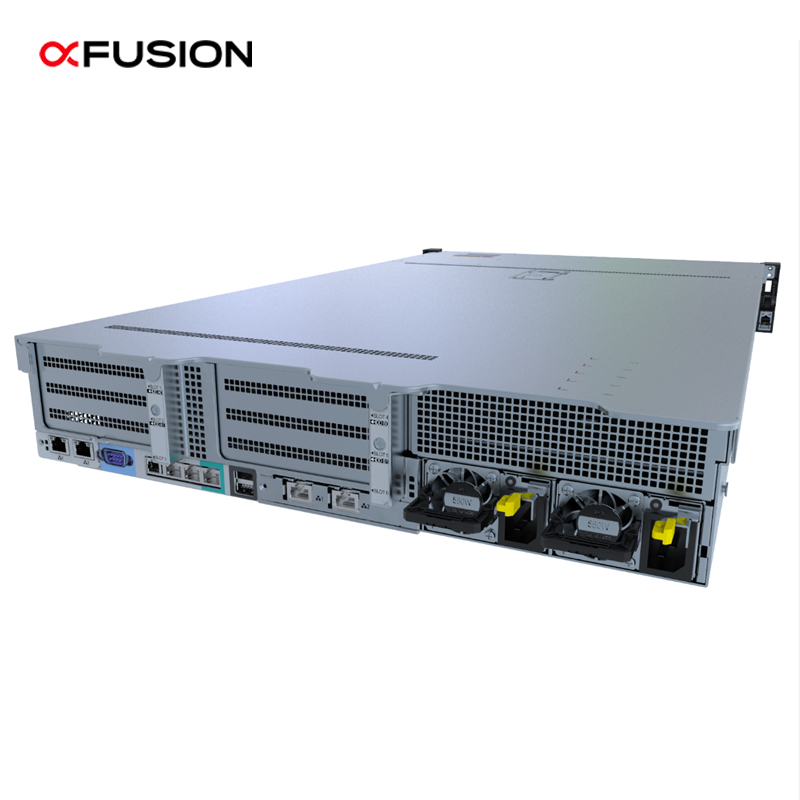

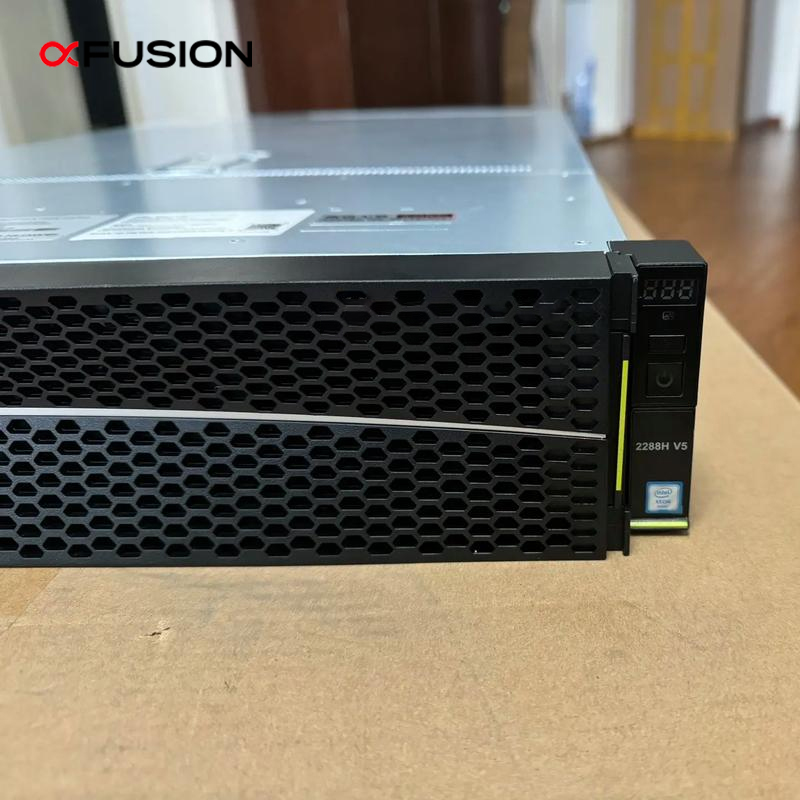

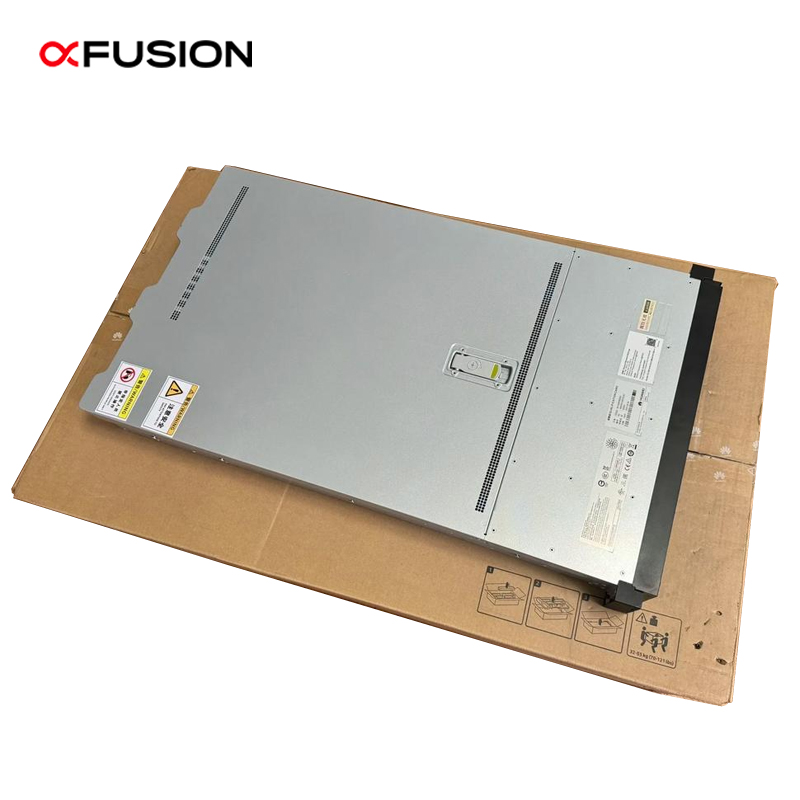

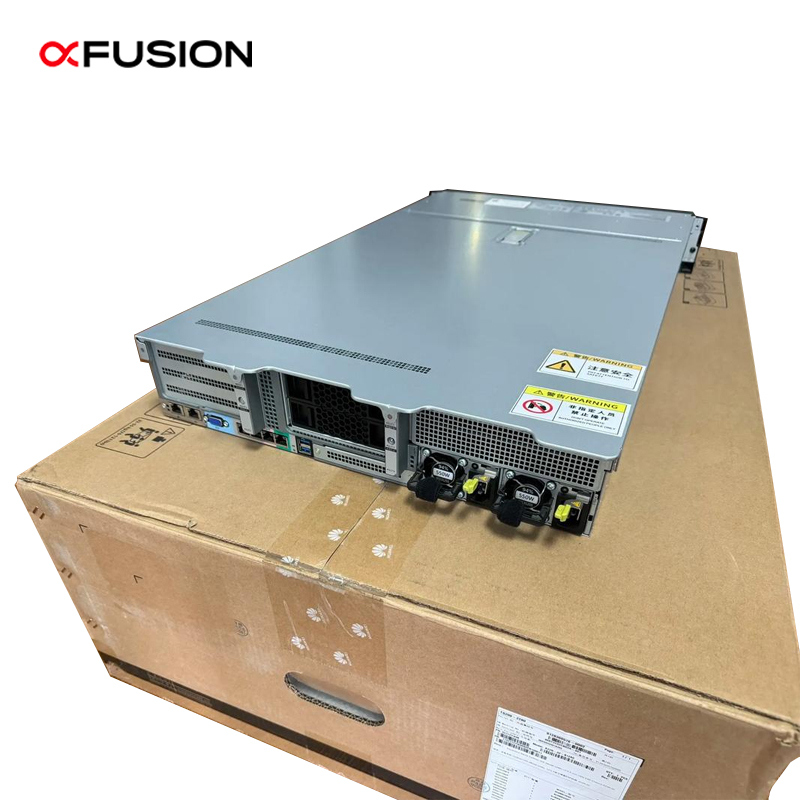

The FusionServer 2288H V5 is a 2U 2-socket rack server with flexible configurations, which can be widely used for cloud computing, virtualization, database, and big data workloads. The 2288H V5 can be configured with 2-socket Intel® Xeon® Scalable processors, 24 ports of DDR4 memory, 10 PCIe expansion slots, and supports large-capacity local storage resources.
It integrates patented technologies such as DEMT (Dynamic Energy Management Technology), intelligent power consumption management, FDM intelligent fault management, and optional full lifecycle management software, which can effectively reduce operations cost and improve return on investment.
| Server Model | FusionServer 2288H V5 |
| Form Factor | 2U, 2-socket rack server |
| Processors | 1/2 x 1st Gen Intel® Xeon® Scalable processors 3100/4100/5100/6100/8100 series, up to 205W 1/2 x 2nd Gen Intel® Xeon® Scalable processors 3200/4200/5200/6200/8200 series, up to 205W |

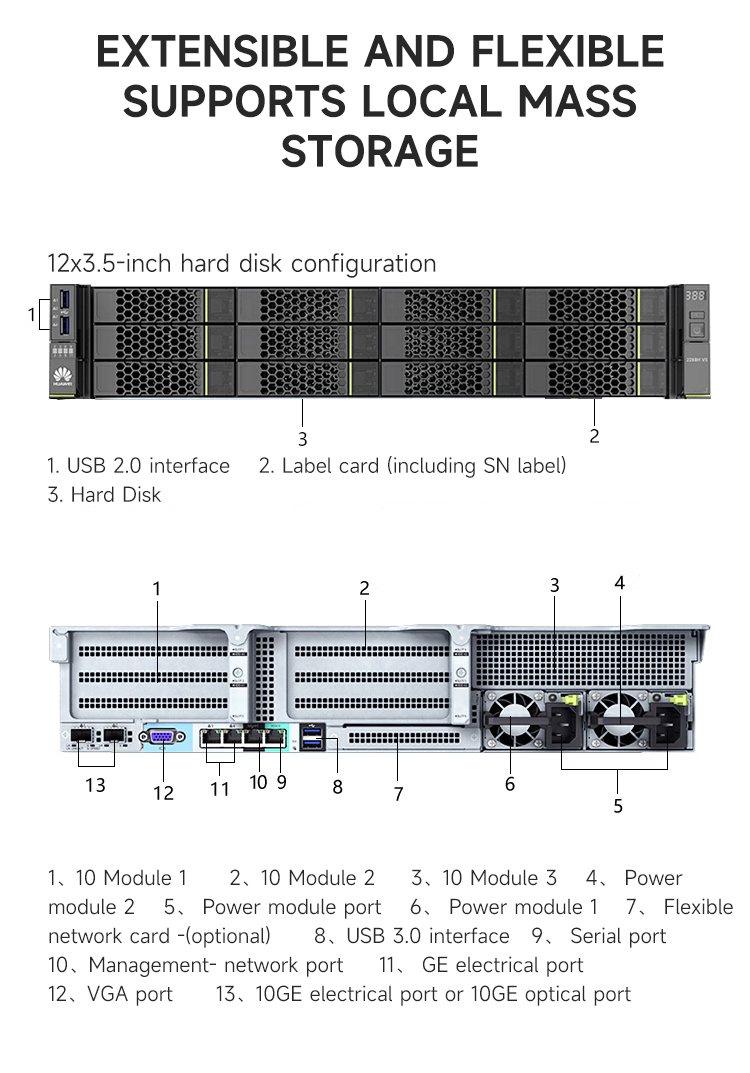

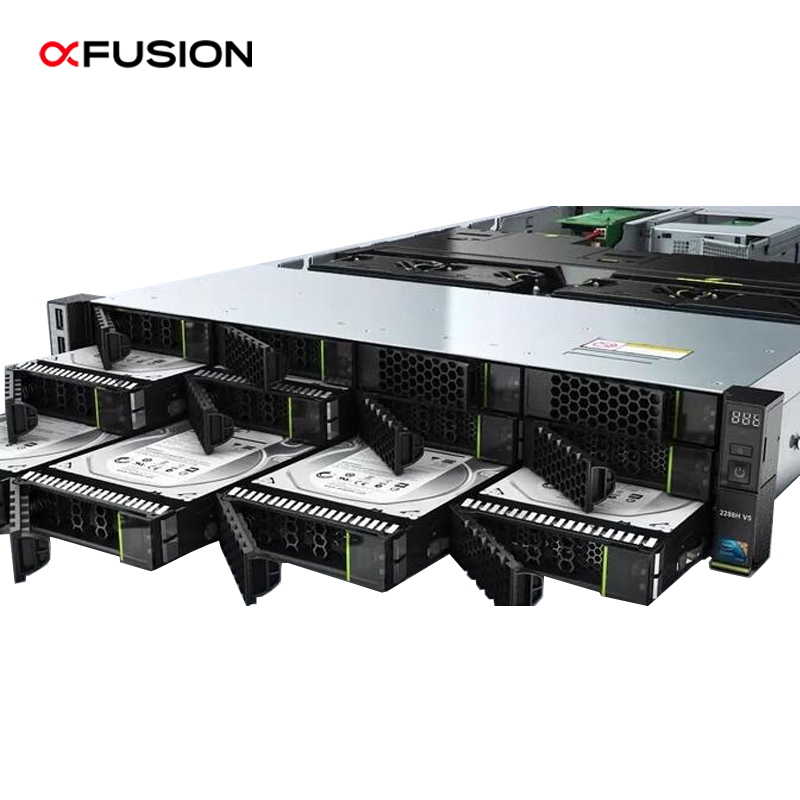

| Local Storage | Supports hot-swappable configurations: • 8/20/24/25/31 x 2.5-inch SAS/SATA/SSD • 12/16/20 x 3.5-inch SAS/SATA • 4/8/12/24/28 NVMe SSD • Flash storage: Dual M.2 SSDs |
| RAID Support | RAID 0, 1, 10, 1E, 5, 50, 6, 60; Cache supercapacitor protection; RAID level migration, disk roaming, self-diagnosis, web remote setting. |
| Network | On-board: 2 x 10GE ports and 2 x GE interfaces Flexible card: 2 x GE, 4 x GE, 2 x 10 GE, 2 x 25 GE, or 1/2 x 56G FDR IB interface |
| PCIe Expansion | Up to 10 PCIe 3.0 expansion slots, including 1 for RAID cards and 1 flexible LOM card |
| Fan Modules | 4 hot-swappable fan modules with optional N+1 redundancy |
| Dimensions | 3.5-inch chassis: 86.1mm x 447mm x 748mm 2.5-inch chassis: 86.1mm x 447mm x 708mm |

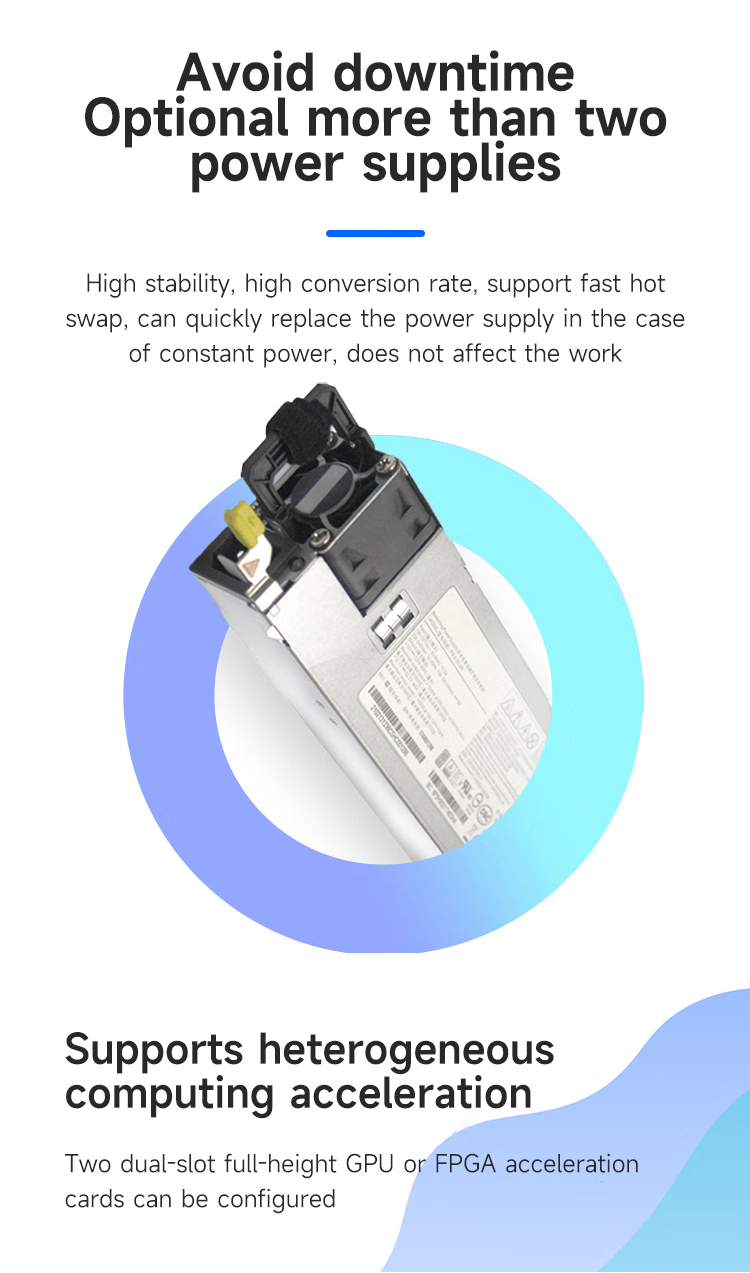

| Power Supply | Hot-swappable PSUs (1+1 redundancy): 550W/900W AC Platinum, 1500W AC Platinum/Titanium, 1500W 380V HVDC, 1200W -48V to -60V DC |
