Tensorium
Tensorium

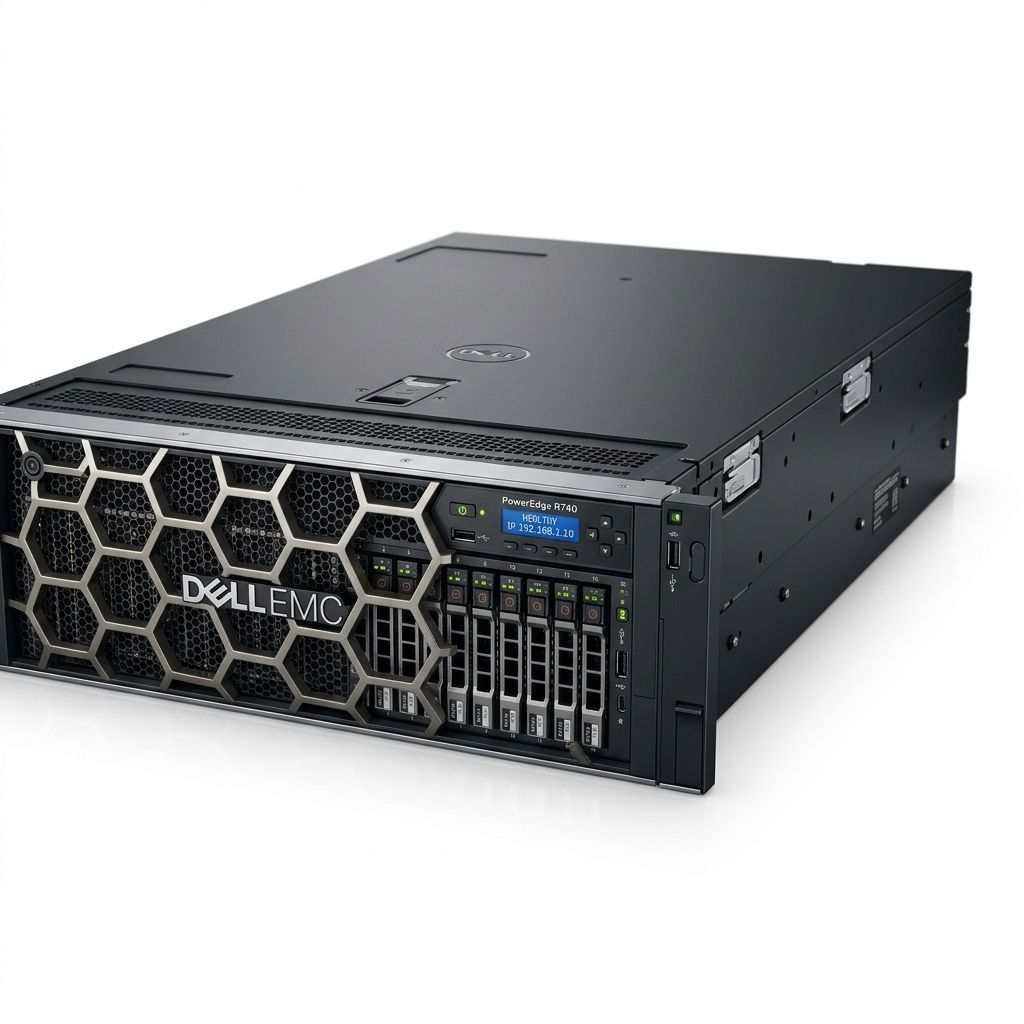

| Server Model | Dell PowerEdge R730 R740 R750 R760XS XD |
| Processor | Up to two 5th generation Intel Xeon scalable processors (up to 28 cores) and 4th generation Intel Xeon scalable processors (up to 32 cores per processor) |
| Memory | Up to 16 DDR5 RDIMMs (up to 1TB supported) NVDIMM No DIMM Speed: up to 4800 MT/S |
| Memory controller |
• Internal controller: PERC H965, PERCH755, PERC H755N, PERCH355, HBA355i • Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSD or USB • External HBA (non-RAID): HBA355e; Software RAID: S160 |
| GPU options | 2x75 WSWV, LP |
| PCIe | • Single CPU configuration: up to 4 PCIe slots (2x8 5.0, 1x16 4.0, 1x8 4.0) • Dual CPU configuration: up to 6 PCIe slots (2 x16 5.0, 2 x16 4.0, 3 x8 4.0) |
| Hot-swappable redundant power supplies |
• 1800 W Titanium grade 200-240 VAC or 240 VDC • 1400 W Platinum class 100-240 VAC or 240 VDC • 1400 W Titanium grade 277 VAC or HVDC (HVDC stands for high voltage DC with 336V DC) • 1100 W Titanium grade 100-240 VAC or 240 VDC • 1100 W -(48V — 60V) DC • 800W Platinum grade 100-240 VAC or 240 VDC 700 W Titanium grade 200-240 VAC or 240 VDC • 600 W Platinum grade 100-240 VAC or 240 VDC |
| Cooling option | • Air cooling |
| Fan | Standard (STD) fans/High Performance Silver (HPR) fans/High Performance Gold (VHP) fans with up to 6 hot swappable fans |
| Size and weight |
• Height - 86.8 mm (3.41 in) • Width - 482 mm (18.97 in) Depth - 707.78 mm (27.85 in) - without baffles 721.62 mm (28.4 in.) -with baffle plate • Weight - maximum 28.6 kg (63.0 lb) |
| Contour specification | 2U rack server |
| Embedded management |
• iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module • Quick Sync 2 wireless module |
| Baffle plate | Optional LCD screen or safety shield |
| Mobility | OpenManage Mobile |
| Embedded NIC | 2 x 1 GbE LOM |
| Warranty | 3 years |
